Product description
The R/S2M series vibration sensor cables are manufactured in Iran by Yekan Company. This series is supplied in multiple lengths such as 10 m, 5 m, and other custom sizes. The main distinguishing feature of the R/S2M cables compared to the S2M series is their Right-Angle connector design.
The connector type is 10SL-4S (Female), built according to the 2-pin MIL-C-5015 standard. Installation of this connector onto contact vibration sensors is performed using a screw-type (threaded) mounting method. The termination area is tin-plated (soldered) to protect the pins against oxidation. The connector offers a wide operating temperature range from –55°C to +125°C, Pollution Degree 3, and an IP67 protection rating.
Structurally, the R/S2M vibration sensor cables consist of three main layers:
-
Outer Jacket (Material: TPU) – TPU provides excellent resistance to cold, heat, UV exposure, and corrosion.
-
Inner Insulation (Material: PVC) – Protects and isolates the conductors.
-
Conductors – Three wires with 22 AWG size:
-
Red: A
-
Black: B
-
Yellow: Shield
-

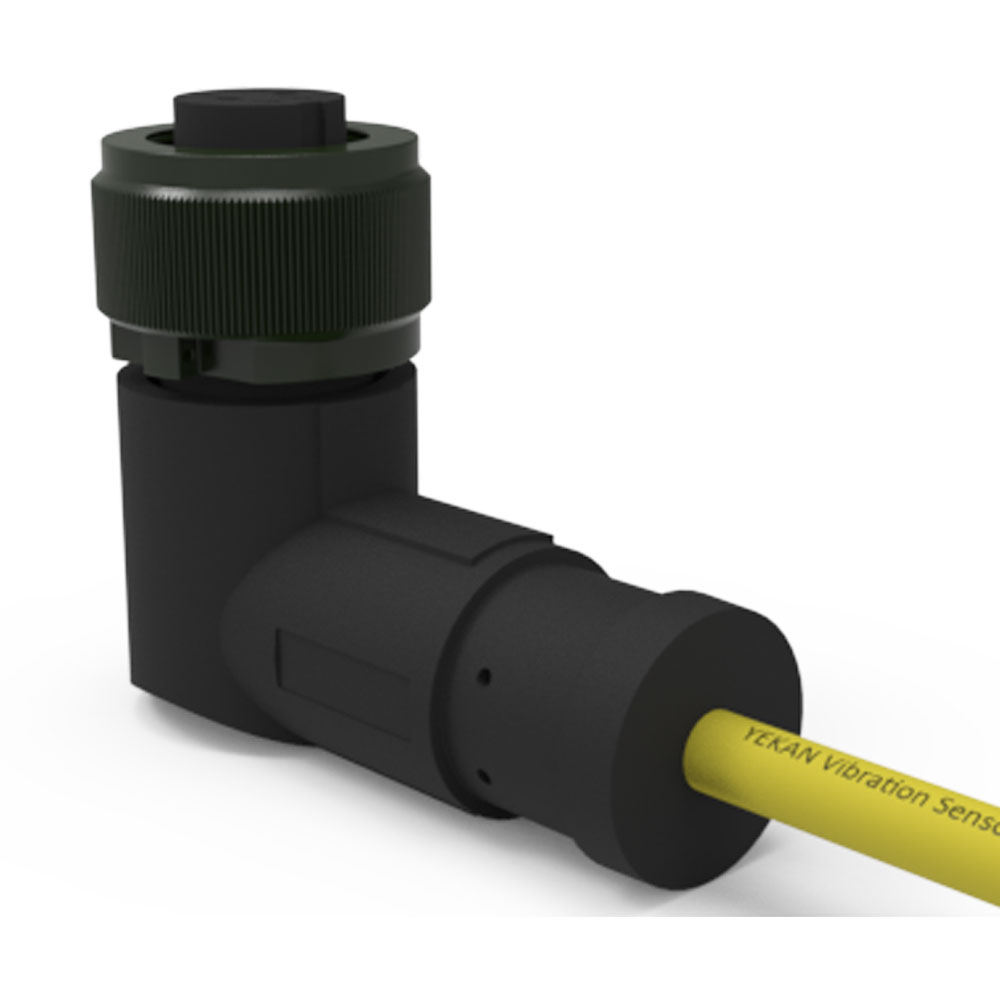

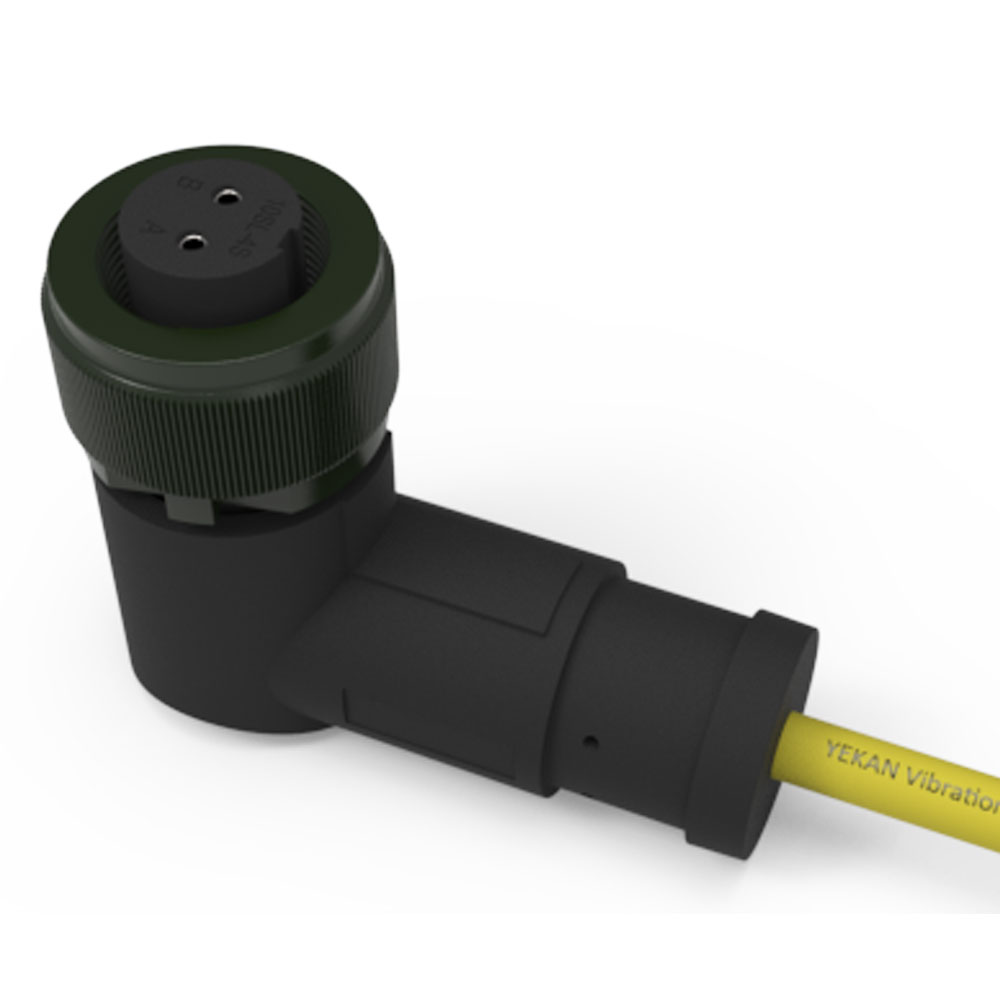

The figure below illustrates the R/S2M connector design. The connector’s screw section is made of aluminum. These right-angle cables are especially suitable for installations where space is limited, offering a flexible mounting solution for contact vibration sensors.
These cables are commonly used to connect popular contact sensors—to vibrometers and vibration monitoring systems. Yekan’s R/S2M vibration sensor cables provide high build quality and cost-effective pricing, making them an excellent choice for industrial applications.
