Product description

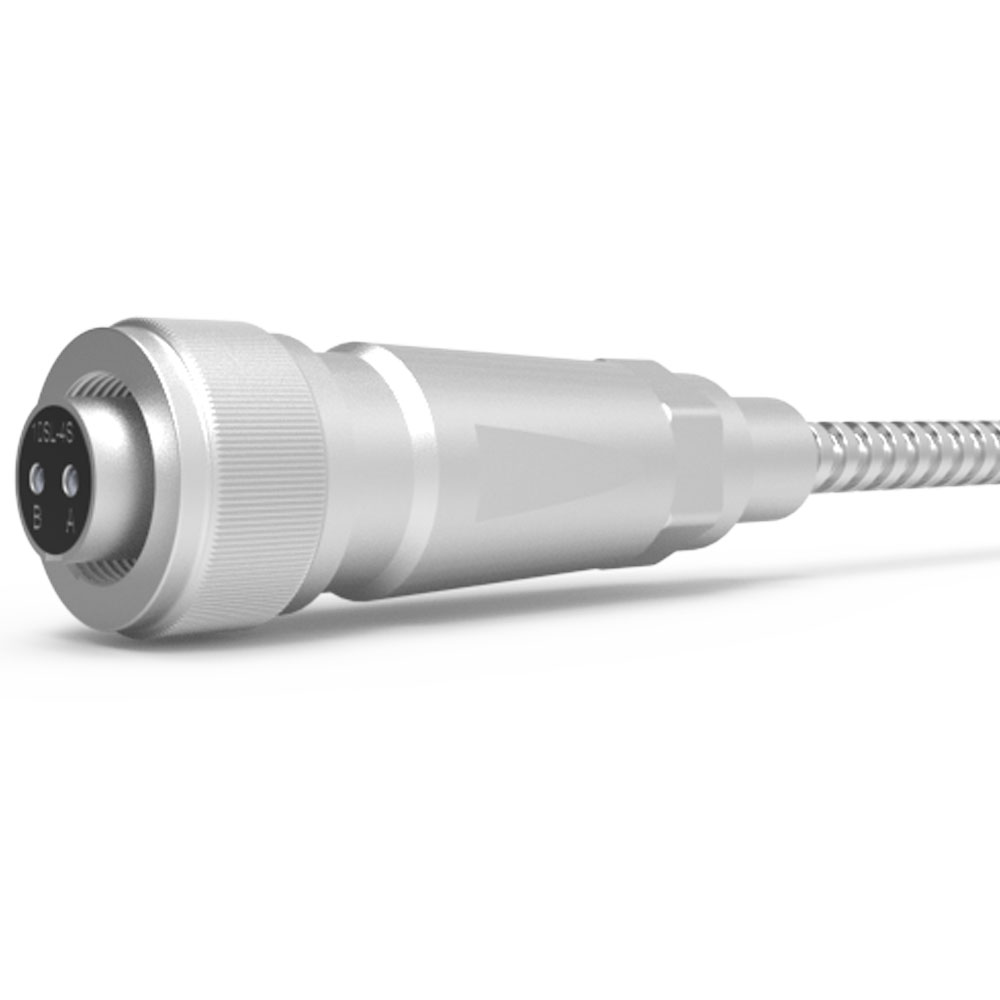

The A2M series vibration sensor cables are manufactured by Yekan Company. This series is designed as armored vibration sensor cables and is available in various lengths such as 10 m, 5 m, and other customized sizes depending on application requirements.

The connector used in this series is a 10SL-4S (Female) model built according to the 2-pin MIL-C-5015 standard. Installation of the connector onto contact vibration sensors is performed through a screw-type (threaded) mounting method. The termination section is tin-plated (soldered) to enhance oxidation resistance and ensure long-term reliability. The connector features an operating temperature range from –55°C to +125°C, Pollution Degree 3, and an IP67 protection rating.

The A2M armored vibration sensor cables consist of four main components:

1. Armor Layer (Material: Stainless Steel) – Provides high mechanical protection and excellent corrosion resistance.

2. Outer Jacket (Material: TPU) – TPU offers superior resistance to cold, heat, UV exposure, and chemical corrosion.

3. Inner Insulation (Material: PVC) – Ensures proper electrical isolation between conductors.

4. Conductors – Three 22 AWG wires:

   • Red: A

   • Black: B

   • Yellow: Shield

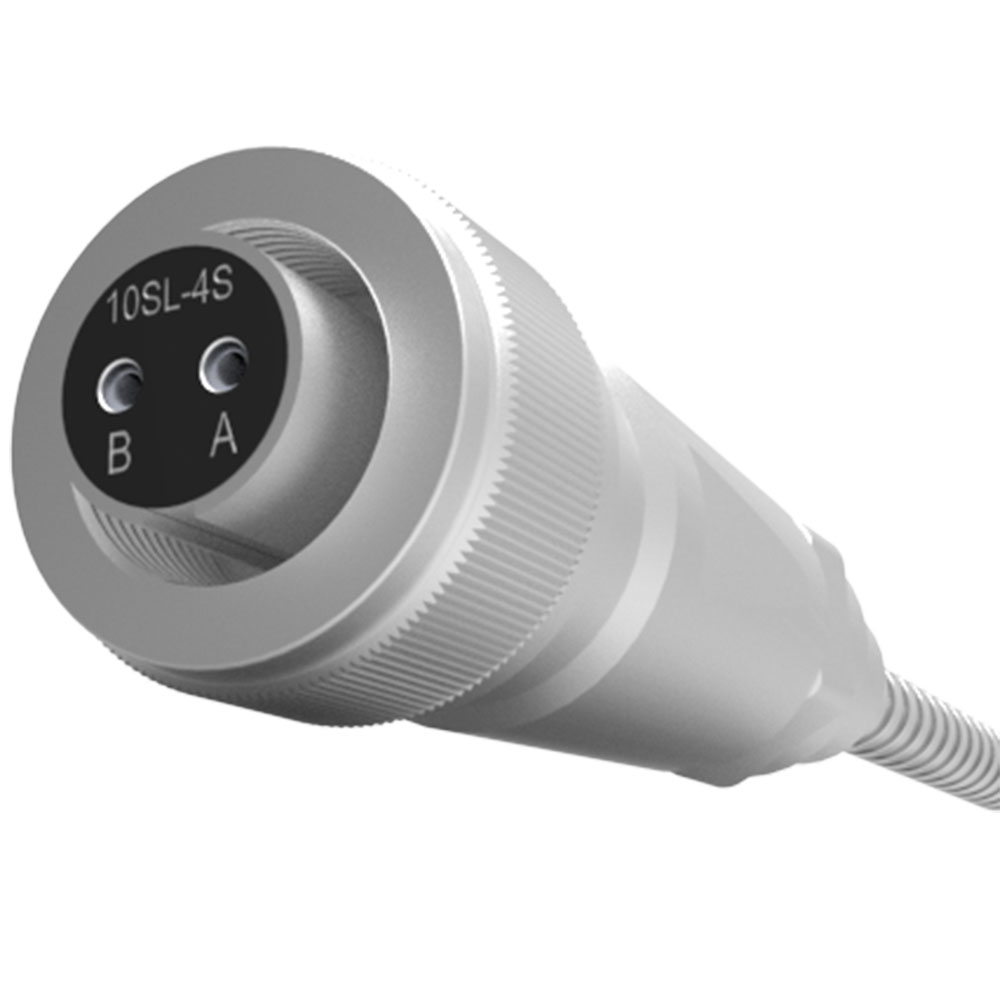

A structural representation of the A2M connector is illustrated in the figure below.
